IBM Executary Transcribing Unit (Wiedergabegerät) 212
IBM; Armonk, N.Y.
- Country
- United States of America (USA)
- Manufacturer / Brand
- IBM; Armonk, N.Y.
- Year
- 1963
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 211202

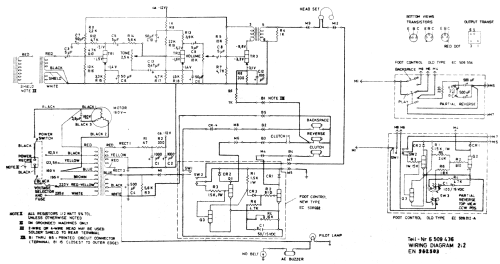

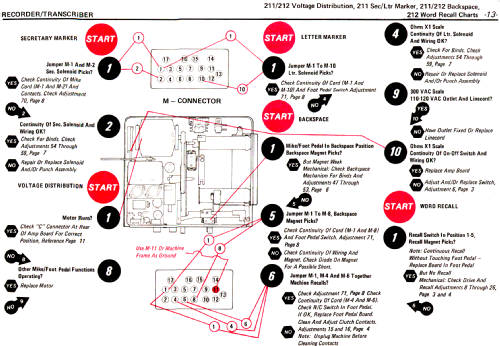

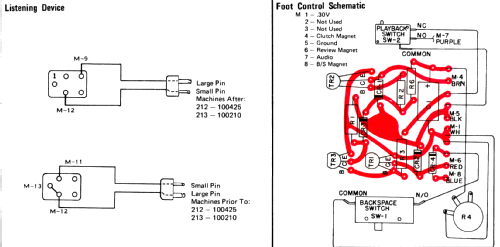

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Special Tape or Cassette-Format
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 160; 190; 220; 230-240; Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

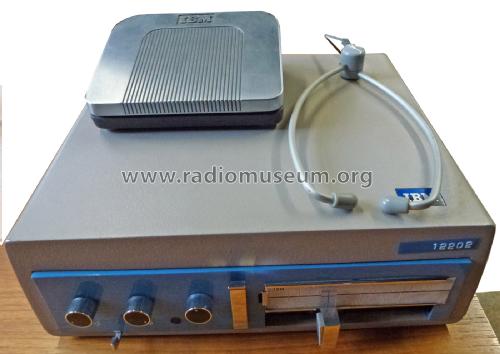

- Model: IBM Executary Transcribing Unit 212 - IBM; Armonk, N.Y.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 290 x 95 x 255 mm / 11.4 x 3.7 x 10 inch
- Notes

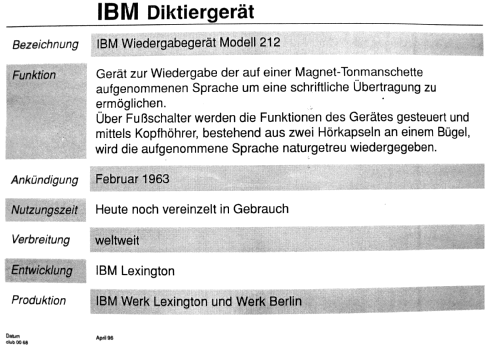

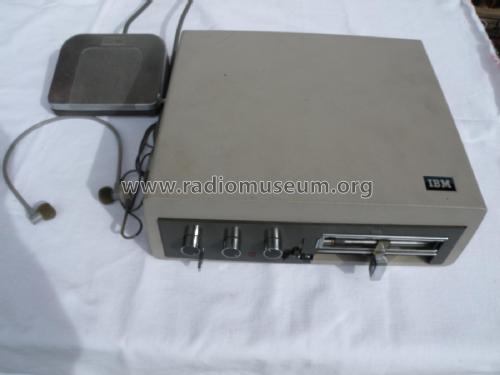

- Gerät zur Wiedergabe der auf einer Magnet-Tonmanschette aufgenommenen Sprache.
Steuerung über Fußschalter. Kopfhöhrer besteht aus 2 Hörkapseln an einem Bügel.
- Net weight (2.2 lb = 1 kg)
- 4.2 kg / 9 lb 4 oz (9.251 lb)
- Author
- Model page created by Heribert Jung. See "Data change" for further contributors.
