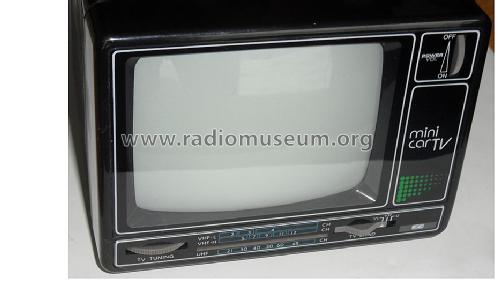

ICE Mini Car TV TV 1002

ICE - Ralf Trautwein GmbH / C.H.T. Electronic; Hamburg, Norderstedt

Data
Forum
Pictures
Collections

  • Year
  • 1990 ??
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 231963

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / AC 230 / DC 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: ICE Mini Car TV TV 1002 - ICE - Ralf Trautwein GmbH / C.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 168 x 120 x 187 mm / 6.6 x 4.7 x 7.4 inch
  • Notes

  • Kleines schwarz-weiß TV- Gerät.

    • Empfänger für terrestrische TV- Signale (analog)
      • CCIR B/G Standard
        • VHF Band I und III
        • UHF Band IV-V
    • Anschluß an Autobatterie oder Netz
    • Eingebaute Teleskopantenne
    • Made in Malaysia
    • Siehe auch:
  • Net weight (2.2 lb = 1 kg)
  • 1.650 kg / 3 lb 10.1 oz (3.634 lb)
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
