Air band Transceiver IC-A20

Air band Transceiver IC-A20; Icom, Inoue (ID = 2329591) TRX Air band Transceiver IC-A20; Icom, Inoue (ID = 2329592) TRX
Air band Transceiver IC-A20; Icom, Inoue (ID = 2329594) TRX Air band Transceiver IC-A20; Icom, Inoue (ID = 2329593) TRX

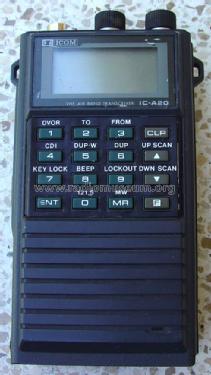

Air band Transceiver IC-A20; Icom, Inoue (ID = 1702889) TRX Air band Transceiver IC-A20; Icom, Inoue (ID = 1702969) TRX
Air band Transceiver IC-A20; Icom, Inoue (ID = 1702970) TRX
Use red slider bar for more.
Air band Transceiver IC-A20; Icom, Inoue (ID = 2329591) TRX
Icom, Inoue: Air band Transceiver IC-A20 [TRX] ID = 2329591 734x1200
Select picture or schematic to display from thumbnails on the right and click for download.
For model Air band Transceiver IC-A20, Icom, Inoue Communication Equipment Corp.; Osaka

Country:  Japan
Manufacturer / Brand:  Icom, Inoue Communication Equipment Corp.; Osaka
alternative name

INOUE COMM. E. CORP
Year: 1989 ?? Category: Transmitter & Receiver (TRX not Amateur)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 35800/455 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Batteries / addl. power jack / 13,8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out 0.6 W (max.)
from Radiomuseum.org Model: Air band Transceiver IC-A20 - Icom, Inoue Communication
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 198 x 35 mm / 2.6 x 7.8 x 1.4 inch
Notes

Air band hand-held transceiver.
1,5W RF,(5 W P.E.P).720 ch, 200 ch NAV, 16 ch prog, VOR.

108 to 135,975 MHz. Mod A3E.

Net weight (2.2 lb = 1 kg) 0.675 kg / 1 lb 7.8 oz (1.487 lb)

Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
