IC-202S

IC-202S; Icom, Inoue (ID = 76426) Amateur IC-202S; Icom, Inoue (ID = 125424) Amateur
IC-202S; Icom, Inoue (ID = 125426) Amateur IC-202S; Icom, Inoue (ID = 125427) Amateur
Use red slider bar for more.
IC-202S; Icom, Inoue (ID = 76426) Amateur
Icom, Inoue: IC-202S [Amateur] ID = 76426 640x590

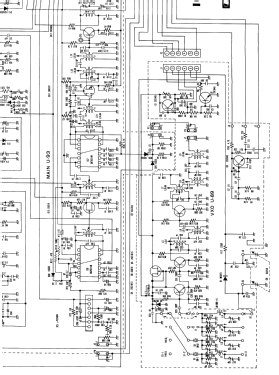

Select picture or schematic to display from thumbnails on the right and click for download.
For model IC-202S, Icom, Inoue Communication Equipment Corp.; Osaka

Country:  Japan
Manufacturer / Brand:  Icom, Inoue Communication Equipment Corp.; Osaka
alternative name

INOUE COMM. E. CORP
Year: 1978–1980 ? Category: Amateur Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 9×1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: IC-202S - Icom, Inoue Communication
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 61 x 183 x 162 mm / 2.4 x 7.2 x 6.4 inch
Notes ICOM Portable-VHF-Transceiver IC-202S.
VXO-controlled coverage of four 200 kHz ranges; Modes: LSB, USB, CW; built in telescopic antenna, connections for ext. 13.8 V DC source, VFO, antenna and morse-key; needs 600 ohms dynamic microphone. Pout: 3 W PEP.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Collectors' prices
Mentioned in -- Original-techn. papers.

Model page created by a member from D. See "Data change" for further contributors.
