IC-24AT

IC-24AT; Icom, Inoue (ID = 745042) Amateur
Use red slider bar for more.
IC-24AT; Icom, Inoue (ID = 745042) Amateur

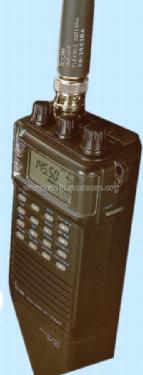

Icom, Inoue: IC-24AT [Amateur] ID = 745042 345x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model IC-24AT, Icom, Inoue Communication Equipment Corp.; Osaka:

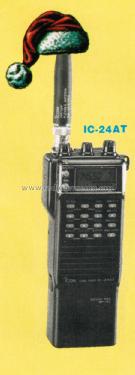

Ausschnitt aus Icom - Katalog

Country:  Japan
Manufacturer / Brand:  Icom, Inoue Communication Equipment Corp.; Osaka
alternative name

INOUE COMM. E. CORP
Year: 1989 ? Category: Amateur Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 30875/455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 7.2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: IC-24AT - Icom, Inoue Communication
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 52 x 136 x 34 inch / 1321 x 3454 x 864 mm
Notes ICOM Handheld-VHF-/UHF-FM-Transceiver IC-24AT.
Frequency range: 144-148 MHz and 440-450 MHz; Pout: 5 W on both bands.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Collectors' prices

Model page created by Iven Müller. See "Data change" for further contributors.
