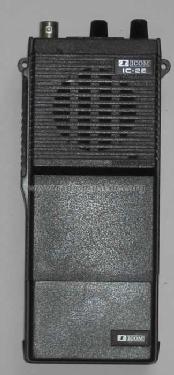

IC-2E; Icom, Inoue (ID = 967039) Amateur IC-2E; Icom, Inoue (ID = 967040) Amateur
IC-2E; Icom, Inoue (ID = 967041) Amateur IC-2E; Icom, Inoue (ID = 967042) Amateur
Use red slider bar for more.
IC-2E; Icom, Inoue (ID = 67796) Amateur
Icom, Inoue: IC-2E [Amateur] ID = 67796 217x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model IC-2E, Icom, Inoue Communication Equipment Corp.; Osaka

Country:  Japan
Manufacturer / Brand:  Icom, Inoue Communication Equipment Corp.; Osaka
alternative name

INOUE COMM. E. CORP
Year: 1980 Category: Amateur Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) 44:
Main principle Superhet, double/triple conversion; ZF/IF 10695/455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 6×1,5 or 8,4 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.2 cm = 1.7 inch
Power out
from Radiomuseum.org Model: IC-2E - Icom, Inoue Communication
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 65 x 117 x 35 mm / 2.6 x 4.6 x 1.4 inch
Notes ICOM FM-Handfunkgerät IC-2E.
2-m-AFu-Band (144-146 MHz); Abstimmbar über 400 Kanäle mit 5-kHz-Schrittweite; PLL-Syntesizer mit Rändelrad-Schalter; Ausgangsleistung: 1,5 W high, 0,15 W low; nominale Stromversorgung 8,4 V mit IC-PB3-Batteriekästchen (65×49×35 mm), Gewicht mit IC-BP3 und Wendelantenne.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 615.00 DM
Collectors' prices
Mentioned in RICOFUNK-Katalog 1980, 1983

Model page created by Egon Penker. See "Data change" for further contributors.
