IC-706 MKIIG

IC-706 MKIIG; Icom, Inoue (ID = 1936938) Amateur

IC-706 MKIIG; Icom, Inoue (ID = 1936939) Amateur

IC-706 MKIIG; Icom, Inoue (ID = 1936940) Amateur

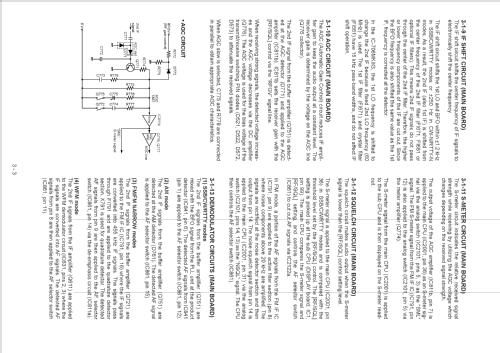

IC-706 MKIIG; Icom, Inoue (ID = 1936941) Amateur

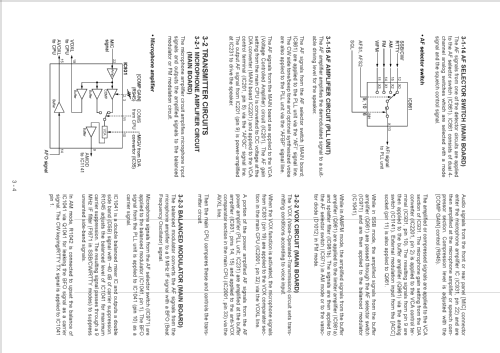

IC-706 MKIIG; Icom, Inoue (ID = 1936943) Amateur

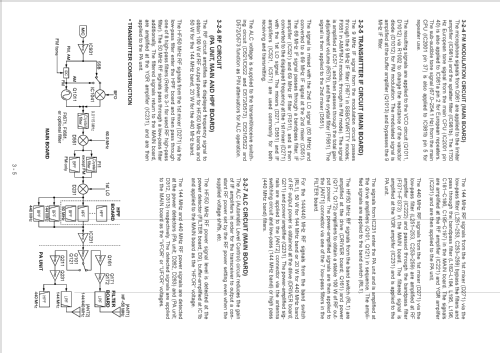

IC-706 MKIIG; Icom, Inoue (ID = 1936944) Amateur

IC-706 MKIIG; Icom, Inoue (ID = 1936945) Amateur

IC-706 MKIIG; Icom, Inoue (ID = 1936946) Amateur

IC-706 MKIIG; Icom, Inoue (ID = 1936947) Amateur

IC-706 MKIIG; Icom, Inoue (ID = 1936948) Amateur
IC-706 MKIIG; Icom, Inoue (ID = 517039) Amateur IC-706 MKIIG; Icom, Inoue (ID = 582351) Amateur
IC-706 MKIIG; Icom, Inoue (ID = 1590011) Amateur IC-706 MKIIG; Icom, Inoue (ID = 1591599) Amateur
IC-706 MKIIG; Icom, Inoue (ID = 1591614) Amateur
Use red slider bar for more.
IC-706 MKIIG; Icom, Inoue (ID = 517039) Amateur
Icom, Inoue: IC-706 MKIIG [Amateur] ID = 517039 900x490

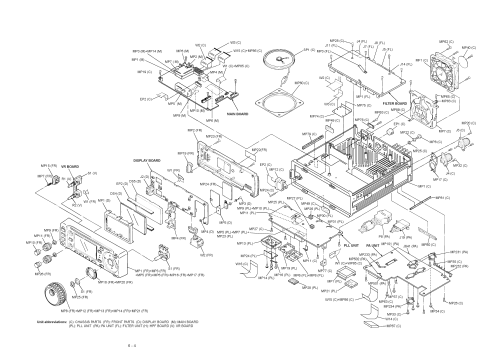

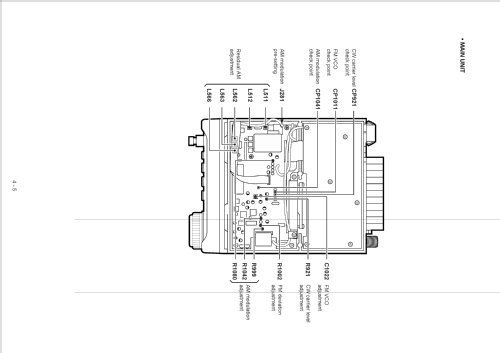

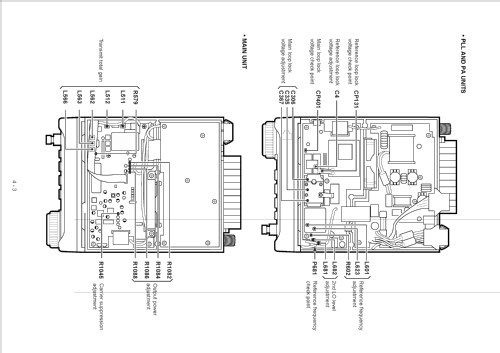

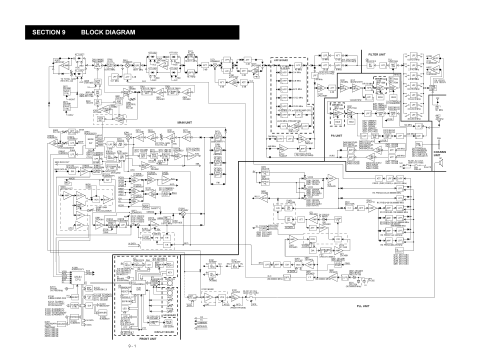

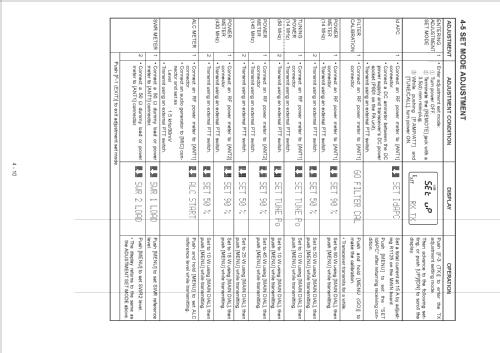

Select picture or schematic to display from thumbnails on the right and click for download.
For model IC-706 MKIIG, Icom, Inoue Communication Equipment Corp.; Osaka:
FA 7/99

Country:  Japan
Manufacturer / Brand:  Icom, Inoue Communication Equipment Corp.; Osaka
alternative name

INOUE COMM. E. CORP
Year: 1999 Category: Amateur Transmitter/Receiver (and Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 13,8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: IC-706 MKIIG - Icom, Inoue Communication
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 167 x 58 x 200 mm / 6.6 x 2.3 x 7.9 inch
Notes ICOM KW-/VHF-/UHF-Transceiver mit Breitbandempfänger IC-706 MKIIG.
Betriebsarten: LSB, USB, CW, RTTY (F1B, J2B), FM, WFM (nur RX);
RX: 0,03···200 MHz, 400···470 MHz;
Intermediate frequencies: 1st IF 69.0100 MHz (AM, FM-N), 69.0115 MHz (AM-N, SSB, FM), 70.700 MHz (FM-W); 2nd IF 9.010 MHz (AM, FM-N), 90.0115 MHz (AM-N, SSB, FM), 10.700 MHz (FM-W); 3rd IF 455 kHz (FM, FM-W).
TX: 160···6 m Pout 100 W, 2 m Pout 50 W, 70 cm Pout 20 W;
Bedienteil komplett absetzbar, einfache Spetrumscope-Funktion, DATA-Buchse für 1k2-/9k6-Packet-Radio, Passband-Tuning-Funktion, 107 Speicher, Semi- und Voll-BK, eingebauter Keyer, schaltbarer Vorverstärker/Abschwächer, DSP mit einstellbarer Rauschminderung und Auto-Notch.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Price in first year of sale 3'000.00 DM
Collectors' prices
Source of data -- Original-techn. papers.
Mentioned in FA 7/99

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
