IC-E92D

Icom, Inoue Communication Equipment Corp.; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 2008
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 182483
    • alternative name: INOUE COMM. E. CORP

Click on the schematic thumbnail to request the schematic as a free document.

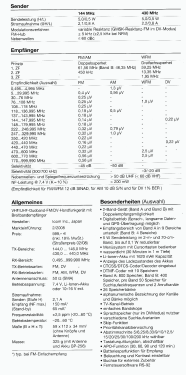

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 61560/450 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Storage and/or dry batteries / 7,4 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: IC-E92D - Icom, Inoue Communication
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 59 x 112 x 34 mm / 2.3 x 4.4 x 1.3 inch
  • Notes
  • ICOM VHF/UHF-Duoband-FM/DV-Handfunkgerät mit Breitbandempfänger IC-E92D.
    Frequenzbereich TX (FM, DV): 144...146 MHz und 430...440 MHz, RX (FM, AM, WFM, DV): 0,495...999,990 MHz; Pout: 5 W auf allen Bändern.
    Digitalbetrieb (Sprach-, langsame Daten- und GPS-Übertragung) möglich; wasserdicht (30 Minuten in 1 m Tiefe); CTCSS/DTS-Coder/Decoder; DTMF-Coder mit 10 Speichern; über 1200 Speicher, alphanumerisch benennbar; einfaches Bandscope; Sprachspeicher (nur im DV-Modus); APO-Funktion; externe Stromversorgung (10...16 V) möglich.
  • Net weight (2.2 lb = 1 kg)
  • 0.325 kg / 0 lb 11.5 oz (0.716 lb)
  • Price in first year of sale
  • 599.00 EUR
  • Mentioned in
  • FA 3/08
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
