- Country
- Japan
- Manufacturer / Brand
- Icom, Inoue Communication Equipment Corp.; Osaka
- Year
- 1997
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 73639
-
- alternative name: INOUE COMM. E. CORP
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit. / DC 13.8 Volt
- Loudspeaker
- - - No sound reproduction output.
- Power out
- 0.2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: IC-PCR100 - Icom, Inoue Communication
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 58 x 130 x 31 mm / 2.3 x 5.1 x 1.2 inch
- Notes

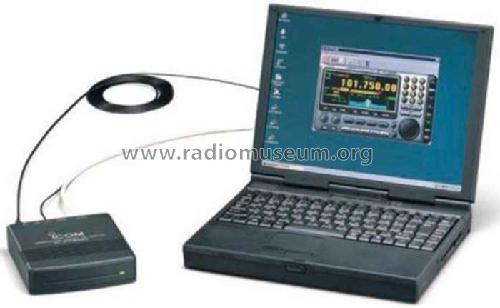

- ICOM Communications Receiver for Computer IC-PCR100.
Frequency range: 0.1 to 1300 MHz; Modes: AM, FM, WFM.
The IC-PCR100 is a computer controlled HF-/VHF-/UHF-receiver in a black box. With a computer (and software) usable only!
- Net weight (2.2 lb = 1 kg)
- 0.5 kg / 1 lb 1.6 oz (1.101 lb)
- Price in first year of sale
- 989.00 DM
- Mentioned in
- FA 11/97
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
