• Country
• Japan

• Manufacturer / Brand
• Icom, Inoue Communication Equipment Corp.; Osaka

• Year
• 1991–1998

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 73628

• • alternative name: INOUE COMM. E. CORP

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 100; 117; 240 / 13.8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

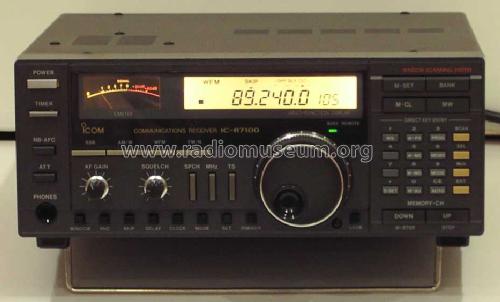

• Model: IC-R7100 - Icom, Inoue Communication

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 241 x 94 x 239 mm / 9.5 x 3.7 x 9.4 inch

• Notes
• ICOM Wideband-Receiver IC-R7100.
  Frequency range: 25-2000 MHz; Modes: AM (Normal, Wide), FM (Normal, Narrow), WFM, SSB; TV optional; 900 memories.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
