DC-DC Converter XL6009

DC-DC Converter XL6009; ICStation; Shenzhen (ID = 1718065) Power-S DC-DC Converter XL6009; ICStation; Shenzhen (ID = 1718066) Power-S
Use red slider bar for more.

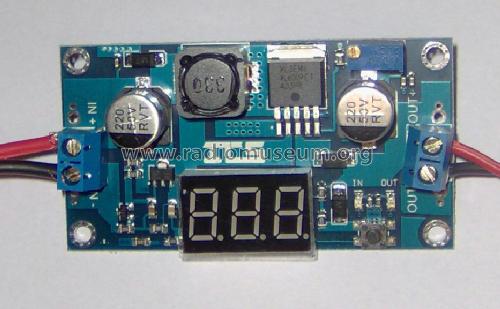

DC-DC Converter XL6009; ICStation; Shenzhen (ID = 1718065) Power-S
ICStation; Shenzhen: DC-DC Converter XL6009 [Power-S] ID = 1718065 933x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model DC-DC Converter XL6009, ICStation; Shenzhen

Country:  People's Republic of China
Manufacturer / Brand:  ICStation; Shenzhen
Year: 2000 ?? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details Converter
Power type and voltage Other, details in remarks or not known. / 4.3 - 32 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: DC-DC Converter XL6009 - ICStation; Shenzhen
Material Printed Circuit Board
Shape Chassis only or for «building in»
Dimensions (WHD) 6.98 x 3.8 x 0.5 inch / 177 x 97 x 13 mm
Notes


Non-insulated booster based on XL6009 switching regulator with built in N-channel power MOSFET and fixed frequency oscillator; not synchronous rectifier; Input Voltage 4.3V-32V; Output Voltage 5V-52V; Maximum Incoming Current 4A; Fixed 400 kHz Switching Frequency; Output ripple 60 mV; Input/Output Voltage Display; suitable for supplying +/- 45VDC to Philco 207 (2 pieces needed) or similar tube equipment, using any 4.3V up to 32V external battery.

Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Mentioned in -- Original-techn. papers.

Model page created by Emilio Focosi. See "Data change" for further contributors.
