Hybrid Amplifier Module HY200

ILP Electronics Limited; Elmsted, Kent

Data
Forum
Pictures
Collections

  • Year
  • 1979 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 342529

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Powered by external power supply or a main unit. / CC: -45 & +45 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 120 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Hybrid Amplifier Module HY200 - ILP Electronics Limited;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 116 x 22 x 50 mm / 4.6 x 0.9 x 2 inch
  • Notes

  • The HY200 now improved to give an output of 120 Watts has been designed to stand the most rugged conditions such as disco or group while still retaining true Hi-Fi performance.

    FEATURES:

    • Thermal shutdown
    • Very low distortion
    • Load line protection
    • Integral heatsink
    • ​No external components.


    APPLICATIONS:
    Hi-Fi-Disco-Monitor-Power slave-Industrial-Public Address.

    SPECIFICATIONS:

    • Output power: 120 W RMS on 8 Ω.
    • Output impedance: 4 ÷ 16 Ω.
    • Input sensitivity and impedance: 500 mV RMS on 100 kΩ.
    • Typical distortion: 0.01 % at 1 kHz
    • Frequency response: 10 Hz to 45 kHz -3 dB
    • Power supply: -45 0 +45 VCC.
    • Signal-to-noise ratio: 96 dB.



  • Price in first year of sale
  • 139.00 AUS $
  • Mentioned in

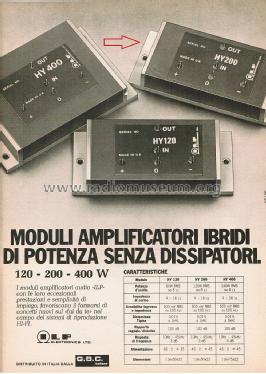

  • -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 8, August 1980.)
  • Literature/Schematics (1)
  • -- Original prospect or advert (Electronics Australia Aug 1979, Page 120)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
