Brunhild 2342 Ch= Nordmende Baustein

Brunhild 2342 Ch= Nordmende Baustein; Ilse-Werke, Ilse & (ID = 447633) Radio
Use red slider bar for more.
Brunhild 2342 Ch= Nordmende Baustein; Ilse-Werke, Ilse & (ID = 447633) Radio

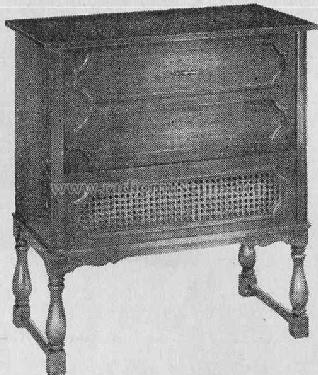

Ilse-Werke, Ilse &: Brunhild 2342 Ch= Nordmende Baustein [Radio] ID = 447633 506x595
Select picture or schematic to display from thumbnails on the right and click for download.
For model Brunhild 2342 Ch= Nordmende Baustein, Ilse-Werke, Ilse & Co.; Uslar

Country:  Germany
Manufacturer / Brand:  Ilse-Werke, Ilse & Co.; Uslar
Year: 1964–1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EAF801 ECC808 EMM803 ELL80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Brunhild 2342 Ch= Nordmende Baustein - Ilse-Werke, Ilse & Co.; Uslar
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 780 x 850 x 420 mm / 30.7 x 33.5 x 16.5 inch
Notes Rundfunk-Chassis = Nordmende Baustein HF-Stereo, Stereo-Decoder (mit ECC81, AF117) eingebaut; Stereo-NF-Verstärker mit 2 Endstufen je 3 W;
Phono-Chassis = Dual 1011.
Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
Price in first year of sale 1'292.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965 / Radiokatalog Band 2, Ernst Erb
