Flamia 2336 Ch= Caruso

Flamia 2336 Ch= Caruso; Ilse-Werke, Ilse & (ID = 443083) Radio
Use red slider bar for more.
Flamia 2336 Ch= Caruso; Ilse-Werke, Ilse & (ID = 443083) Radio

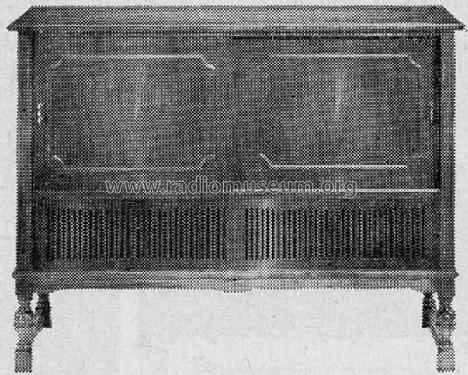

Ilse-Werke, Ilse &: Flamia 2336 Ch= Caruso [Radio] ID = 443083 604x483
Select picture or schematic to display from thumbnails on the right and click for download.
For model Flamia 2336 Ch= Caruso, Ilse-Werke, Ilse & Co.; Uslar

Country:  Germany
Manufacturer / Brand:  Ilse-Werke, Ilse & Co.; Uslar
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EAF801 ECC808 ECLL800 ECLL800 EMM803 ECC81
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Flamia 2336 Ch= Caruso - Ilse-Werke, Ilse & Co.; Uslar
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1200 x 890 x 430 mm / 47.2 x 35 x 16.9 inch
Notes Rundfunk-Chassis = Nordmende Caruso 867.675.08 (Katalog gibt 2× ECL800 statt ECLL800 an), Stereo-NF-Verstärker mit 2 Endstufen je 7 W;
Phono-Chassis = Philips AG1035.
Net weight (2.2 lb = 1 kg) 55 kg / 121 lb 2.3 oz (121.145 lb)
External source of data erb
Source of data Handbuch VDRG 1967/1968 / Radiokatalog Band 2, Ernst Erb
