• Country
• United States of America (USA)

• Manufacturer / Brand
• Imperial (post WW2); (where)

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 300350

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BD6 12AV6 35C5 or 50C5 35W4

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     2 FM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110/230 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 11 cm = 4.3 inch

• Power out
• 1.5 W (2 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

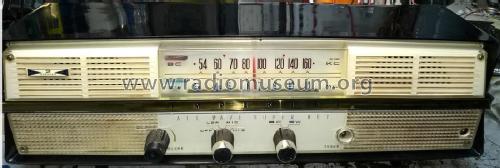

• Model: 5M-W1 - Imperial post WW2; where

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 150 x 130 mm / 18.5 x 5.9 x 5.1 inch

• Author
• Model page created by Matthew Xenakis. See "Data change" for further contributors.

• Other Models

• Here you find 17 models, 17 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
