AM-FM-Radio Receiver BC-R60

AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195159) Radio AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195158) Radio
AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195160) Radio AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195161) Radio
AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195162) Radio AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195163) Radio
AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195164) Radio AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195165) Radio
AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195166) Radio AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195167) Radio
Use red slider bar for more.
AM-FM-Radio Receiver BC-R60; Indin brand; where? (ID = 2195159) Radio
Indin brand; where?: AM-FM-Radio Receiver BC-R60 [Radio] ID = 2195159 1050x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM-Radio Receiver BC-R60, Indin (brand); (where?)

Country:  People's Republic of China
Manufacturer / Brand:  Indin (brand); (where?)
Year: 2017 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details

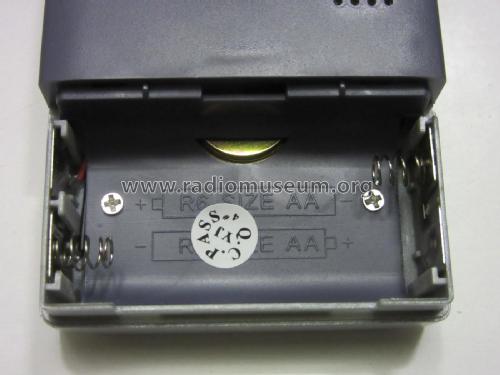

Power type and voltage Dry Batteries / AA: 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 cm = 1.2 inch
Power out
from Radiomuseum.org Model: AM-FM-Radio Receiver BC-R60 - Indin brand; where?
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 58 x 95 x 21 mm / 2.3 x 3.7 x 0.8 inch
Notes

Sendereinstellung mittels Drehkondensator. UKW: 88 bis 108 MHz.
Maße angegeben ohne Teleskopantenne und hinterem Befestigungsclip.
Buchse für Ohrhörer.

Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.



All listed radios etc. from Indin (brand); (where?)
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
