• Country
• Spain

• Manufacturer / Brand
• Industria electrica Sevein S.L.; Aspe ALICANTE

• Year
• 1950 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 251547

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• none

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 80-220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

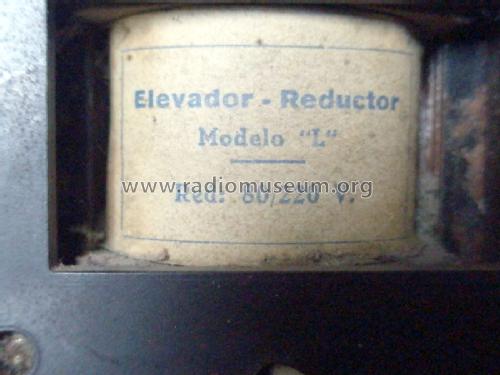

• Model: Elevador - Reductor L - Industria electrica Sevein S.L

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 88 x 75 x 75 mm / 3.5 x 3 x 3 inch

• Notes

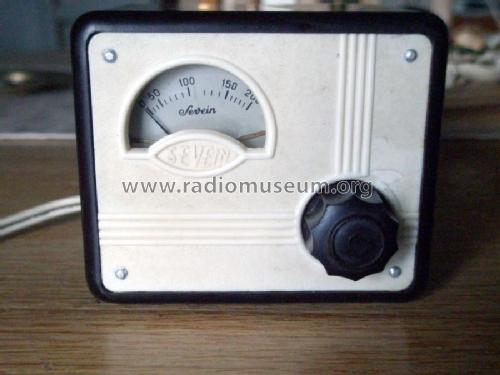

• AC Multitapped Mains Voltage Auto Transformer with Volt Meter.
  Input Voltage: 80 - 250 Volt.
  Output Voltage 117 Volt.
  Power: 50 VA.

• Net weight (2.2 lb = 1 kg)
• 0.840 kg / 1 lb 13.6 oz (1.85 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Carlos Saavedra. See "Data change" for further contributors.
