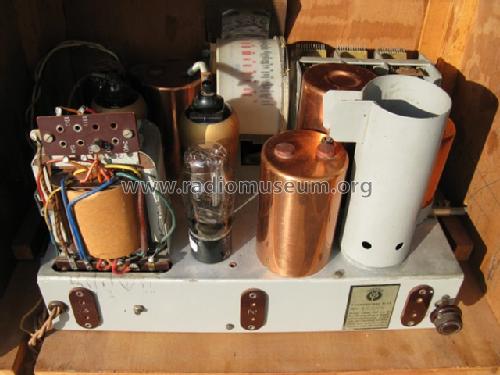

Allwellen U-Super S4FW; Ingelen, (ID = 672992) Radio Allwellen U-Super S4FW; Ingelen, (ID = 672998) Radio

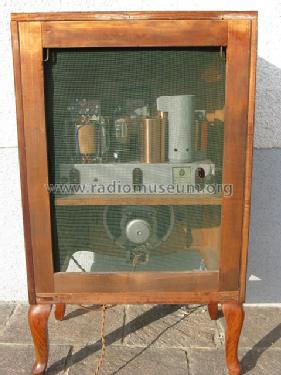

Allwellen U-Super S4FW; Ingelen, (ID = 672996) Radio Allwellen U-Super S4FW; Ingelen, (ID = 672991) Radio

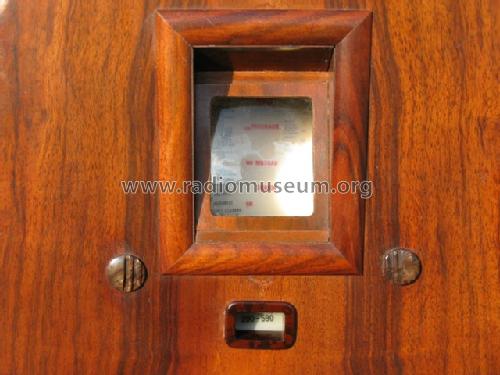

Allwellen U-Super S4FW; Ingelen, (ID = 672993) Radio Allwellen U-Super S4FW; Ingelen, (ID = 672994) Radio
Allwellen U-Super S4FW; Ingelen, (ID = 672997) Radio
Use red slider bar for more.
Allwellen U-Super S4FW; Ingelen, (ID = 672992) Radio
Ingelen,: Allwellen U-Super S4FW [Radio] ID = 672992 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Allwellen U-Super S4FW Schrank, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Ingelen Schrank S4FW

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: E446 E447 E444 E443H 1805
Main principle Superheterodyne (common); ZF/IF 128,5 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Allwellen U-Super S4FW [Schrank] - Ingelen, Elektrotechnische
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 495 x 840 x 310 mm / 19.5 x 33.1 x 12.2 inch
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Mentioned in - - Data from my own collection

Model page created by Alois Steiner. See "Data change" for further contributors.
