Mirabell L

Mirabell L ; Ingelen, (ID = 339743) Radio

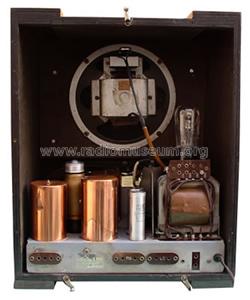

Mirabell L ; Ingelen, (ID = 734040) Radio Mirabell L ; Ingelen, (ID = 734041) Radio
Mirabell L ; Ingelen, (ID = 734043) Radio
Use red slider bar for more.

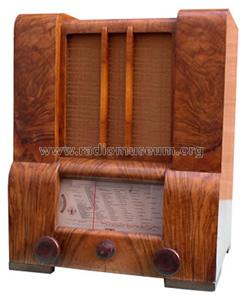

Mirabell L ; Ingelen, (ID = 734040) Radio
Ingelen,: Mirabell L [Radio] ID = 734040 245x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mirabell L, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
..radiomuseum-croatia.com/

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK1 E446 AB1 E443H 1805
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Mirabell L - Ingelen, Elektrotechnische
Notes Export;Abst.Anz.
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
