TR-3500 (52130545)

TR-3500 ; Ingelen, (ID = 2031575) Radio

TR-3500 ; Ingelen, (ID = 2031576) Radio

TR-3500 ; Ingelen, (ID = 68588) Radio

TR-3500 ; Ingelen, (ID = 853352) Radio
TR-3500 ; Ingelen, (ID = 1774292) Radio TR-3500 ; Ingelen, (ID = 572477) Radio
TR-3500 ; Ingelen, (ID = 572479) Radio TR-3500 ; Ingelen, (ID = 572480) Radio
TR-3500 ; Ingelen, (ID = 1251077) Radio TR-3500 ; Ingelen, (ID = 1774291) Radio
TR-3500 ; Ingelen, (ID = 1774293) Radio TR-3500 ; Ingelen, (ID = 1774294) Radio
Use red slider bar for more.

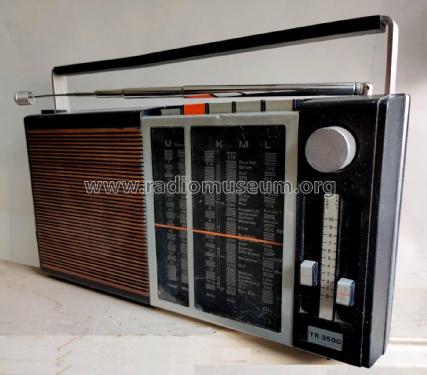

TR-3500 ; Ingelen, (ID = 1774292) Radio

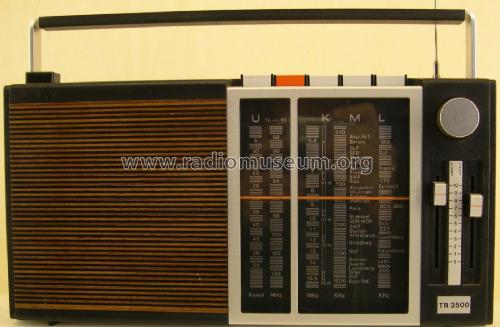

Ingelen,: TR-3500 [Radio] ID = 1774292 1400x1139
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-3500 (52130545), Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1972/1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: 2SC535 2SC461 2SC460 2SC460 2SC460 2SC460 2SC460 2SC458 2SB77 2SB495 2SB495
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 1.4 W (unknown quality)
from Radiomuseum.org Model: TR-3500 - Ingelen, Elektrotechnische
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 305 x 170 x 85 mm / 12 x 6.7 x 3.3 inch
Collectors' prices
Source of data -- Schematic / Radiokatalog Band 2, Ernst Erb

Model page created by Gerhard Heigl. See "Data change" for further contributors.



All listed radios etc. from Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Here you find 437 models, 383 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
