For model U6, Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien:
Ingelen U6 (LW,MW-Rahmen)

Country:  Austria
Manufacturer / Brand:  Ingelen, Elektrotechnische Fabrik Ing. Ludwig Neumann GmbH; Wien
Brand

Elektrot.Fabrik Ludwig Neumann
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: E424 E415 E442 E424 E438 C443 506
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: U6 - Ingelen, Elektrotechnische
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 480 x 240 x 350 mm / 18.9 x 9.4 x 13.8 inch

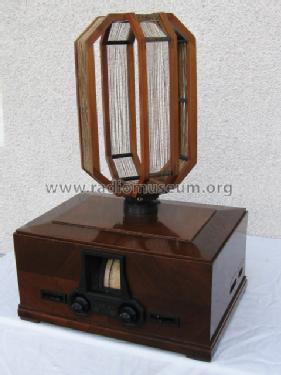

Notes Audiongleichrichter mit Trommelskala und Rahmenantenne. Dazu passend der Lautsprechertisch.
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 1,140.00 öS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
