• Year
  • 1970 ??
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 84736
    • Brand: Elektrot.Fabrik Ludwig Neumann

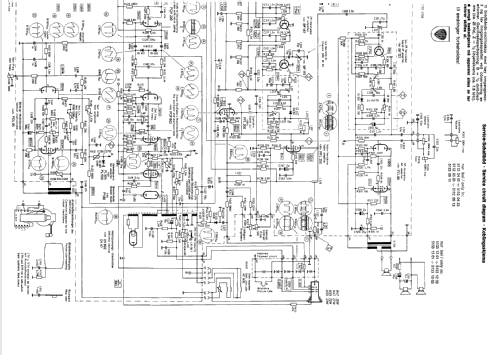

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Valves / Tubes
  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Weltblick 1133 - Ingelen, Elektrotechnische
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  • Fernsehband: VHF Band I+III, UHF Band IV/V. Ausführung: Type 5133 11 05 Nußbaum natur; Type 5133 11 07 Nußbaum glänzend.
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
