• Year
  • 1966
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 84638
    • Brand: Elektrot.Fabrik Ludwig Neumann

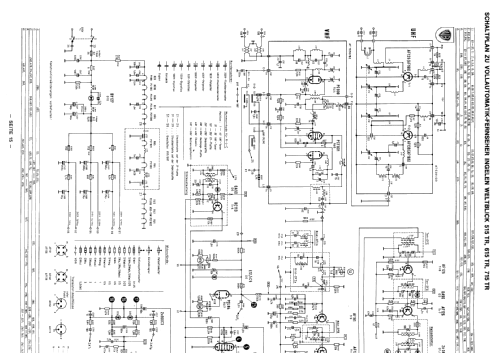

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Weltblick 615TR - Ingelen, Elektrotechnische
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 750 x 505 x 400 mm / 29.5 x 19.9 x 15.7 inch
  • Notes
  • Fernsehband VHF I+III (Kanal 2-12), UHF IV/V (Kanal 21-68).
  • Net weight (2.2 lb = 1 kg)
  • 28 kg / 61 lb 10.8 oz (61.674 lb)
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
