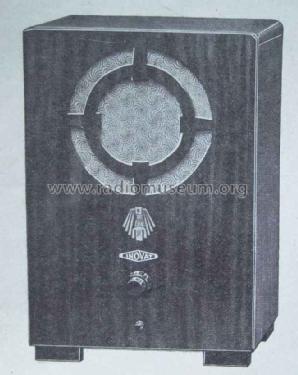

Secteur Inovavox 3313

Inovat - voir aussi Émyphone; Boulogne-Billancourt, Paris

Data
Forum
Pictures
Collections

  • Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 254640

 Technical Specifications

  • Number of Tubes
  • 3
  • Valves / Tubes
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Secteur Inovavox 3313 - Inovat - voir aussi Émyphone;
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 350 x 510 x 230 mm / 13.8 x 20.1 x 9.1 inch
  • Notes

  • 1 détectrice, 1 BF, 1 valve.

    Alimentation secteur alternatif. Voltage et périodes differents (à specifier à la commande).

  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • Price in first year of sale
  • 625.00 FRF
  • Mentioned in

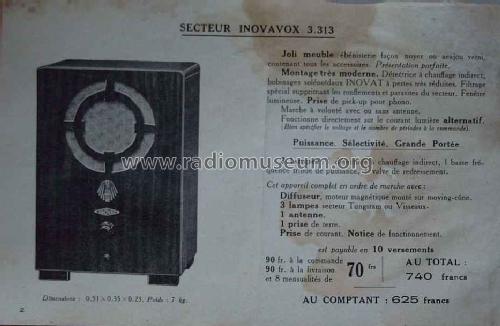

  • - - Manufacturers Literature (Catalogue Général 1933)
  • Author
  • Model page created by Manfred Rathgeb. See "Data change" for further contributors.
