• Year
  • 1950 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 122765

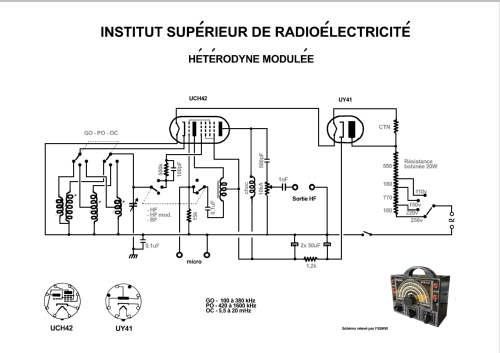

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 150; 220; 250 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Hétérodyne Modulée - Institut Supérieur de Radio-
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Hétérodyne Modulée, 2 Rimlock 40 series tubes + one regulator.

    Regardez aussi le modèle comparable de l'École Professionnelle Supérieure.

    Il semblerait qu'il existe pour le même boitier des versions différentes de l'alimentation.

  • Net weight (2.2 lb = 1 kg)
  • 1.8 kg / 3 lb 15.4 oz (3.965 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
