Envoy Midget (AC)

Envoy Midget ; Insuline Corp. Of (ID = 476005) Radio
Use red slider bar for more.
Envoy Midget ; Insuline Corp. Of (ID = 476005) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Insuline Corp. Of America (ICA); New York City
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 51 51 24 47 80
Main principle TRF without regeneration; 1 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-120; 205-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Envoy Midget - Insuline Corp. Of America ICA;
Notes Two models for 110V or 220V.

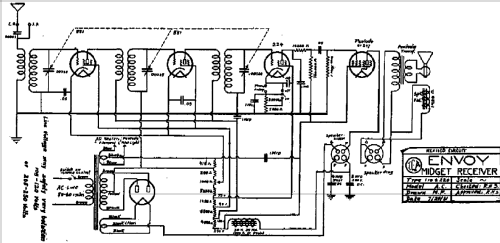

Circuit diagram reference Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

Model page created by Götz Linss. See "Data change" for further contributors.
