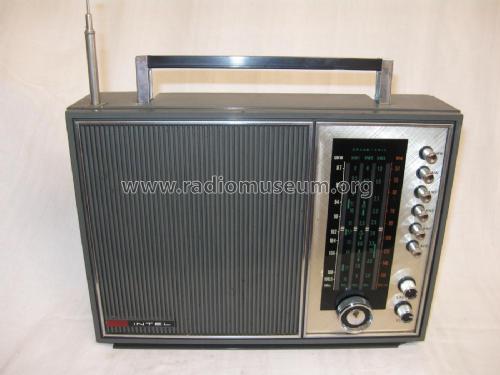

Grand Prix ; Intel, Interelectric (ID = 396243) Radio
Intel, Interelectric: Grand Prix [Radio] ID = 396243 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grand Prix, Intel, Interelectric; München

Country:  Germany
Manufacturer / Brand:  Intel, Interelectric; München
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 6 ×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: Grand Prix - Intel, Interelectric; München
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 320 x 240 x 100 mm / 12.6 x 9.4 x 3.9 inch
Notes Wellenbereiche: UKW, MW und KW1, KW2 und KW3.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Collectors' prices

Model page created by Peter Nicolaisen. See "Data change" for further contributors.



All listed radios etc. from Intel, Interelectric; München
Here you find 47 models, 46 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
