Capri A.M. P-233/0

Capri A.M. P-233/0; Inter Electronica S. (ID = 211868) Radio

Capri A.M. P-233/0; Inter Electronica S. (ID = 2108871) Radio
Capri A.M. P-233/0; Inter Electronica S. (ID = 2407671) Radio Capri A.M. P-233/0; Inter Electronica S. (ID = 2407675) Radio
Capri A.M. P-233/0; Inter Electronica S. (ID = 2407672) Radio Capri A.M. P-233/0; Inter Electronica S. (ID = 2407673) Radio
Capri A.M. P-233/0; Inter Electronica S. (ID = 2407676) Radio Capri A.M. P-233/0; Inter Electronica S. (ID = 2407677) Radio
Capri A.M. P-233/0; Inter Electronica S. (ID = 986542) Radio Capri A.M. P-233/0; Inter Electronica S. (ID = 301580) Radio
Capri A.M. P-233/0; Inter Electronica S. (ID = 301577) Radio Capri A.M. P-233/0; Inter Electronica S. (ID = 301578) Radio
Use red slider bar for more.

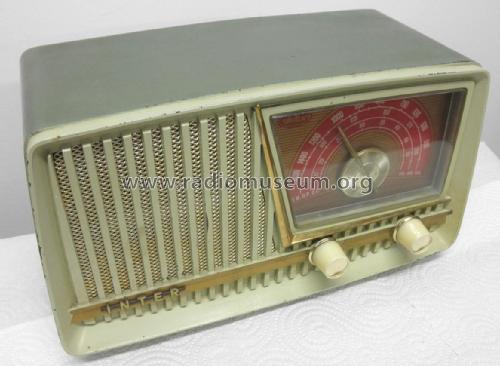

Capri A.M. P-233/0; Inter Electronica S. (ID = 2407671) Radio
Inter Electronica S.: Capri A.M. P-233/0 [Radio] ID = 2407671 1163x853
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capri A.M. P-233/0, Inter Electronica S.A.; Barcelona

Country:  Spain
Manufacturer / Brand:  Inter Electronica S.A.; Barcelona
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UF89 UABC80 UL84
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-130 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Capri A.M. P-233/0 - Inter Electronica S.A.;
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 310 x 170 x 140 mm / 12.2 x 6.7 x 5.5 inch
Notes UL84 = 1955 AM, OC y Banda Pesquera (1600-2400 Kc/s)
Price in first year of sale 2'154.90 ESP
External source of data Ernst Erb
Source of data Radio Historia y Técnica, J.J.E.
Mentioned in -- Original-techn. papers.

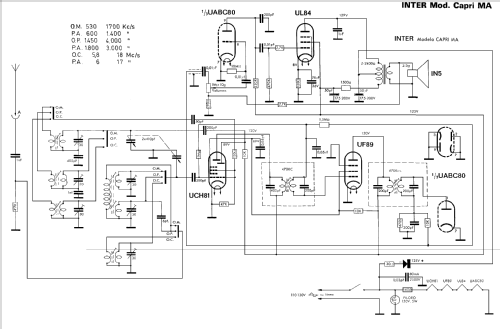

Literature/Schematics (1) -- Schematic
