• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1975

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 323141

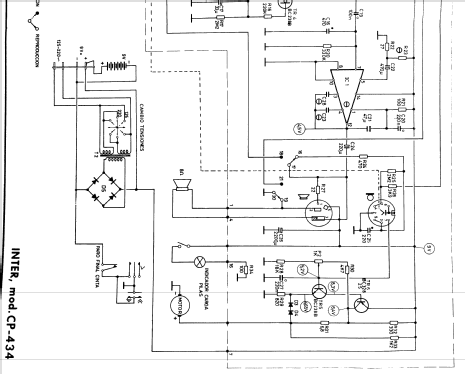

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BC238 BC238 BC238 TDA1045 or. TBA790 or. TAA611 or. SN76001 BC238 BC238 BC328

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / AA: 6 x 1,5 / CC: 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CP-434 - Inter Electrónica, S.A., Inter

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 130 x 70 x 225 mm / 5.1 x 2.8 x 8.9 inch

• Notes

• Inter electrónica, S.A., Cassette CP-434

  Posee salida para altavoz, auriculares y tiene entrada de micrófono.
  También admite fuente de alimentación externa de 9v.

  Como amplificador de audio puede incorporar el circuito integrado TDA1045 o el TAA611, con pequeñas modificaciones en sus componentes asociados.

• Literature/Schematics (1)
• -- Original-techn. papers. (Esquemario Magnetófonos y Cassettes REDE, Tomo IV, 1977)

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
