E-152 TRP-415

E-152 TRP-415; Inter Electrónica, S (ID = 1809037) Radio E-152 TRP-415; Inter Electrónica, S (ID = 1809122) Radio
E-152 TRP-415; Inter Electrónica, S (ID = 1809123) Radio E-152 TRP-415; Inter Electrónica, S (ID = 1809124) Radio
Use red slider bar for more.

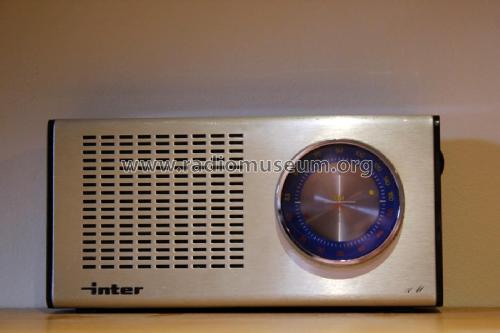

E-152 TRP-415; Inter Electrónica, S (ID = 1809037) Radio
Inter Electrónica, S: E-152 TRP-415 [Radio] ID = 1809037 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model E-152 TRP-415, Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

Country:  Spain
Manufacturer / Brand:  Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona
Year: 1974 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: SF115 SF115 SF115 SN76001
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: E-152 TRP-415 - Inter Electrónica, S.A., Inter
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 193 x 95 x 45 mm / 7.6 x 3.7 x 1.8 inch

Model page created by Ruben Villar. See "Data change" for further contributors.
