• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155840

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF195 BF195 BF195 TBA460 2N4289 SC109 2N4289 PTO AC188 AC187

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

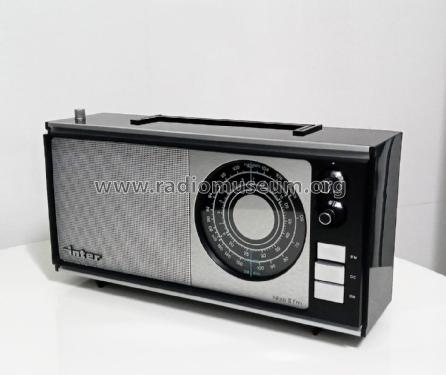

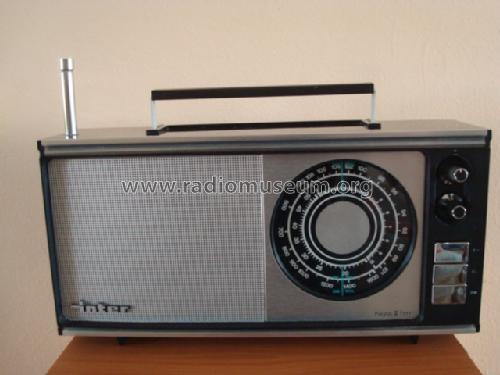

• Model: Niza II FM TRP433 - Inter Electrónica, S.A., Inter

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 305 x 160 x 115 mm / 12 x 6.3 x 4.5 inch

• Notes

• También hay 6 diodos

  Hay un circuito integrado TBA460A

  Altavoz de 10 ohmios

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
