Kadette 36

Kadette 36 ; International Radio (ID = 617520) Radio
Kadette 36 ; International Radio (ID = 913894) Radio Kadette 36 ; International Radio (ID = 913677) Radio
Kadette 36 ; International Radio (ID = 813997) Radio Kadette 36 ; International Radio (ID = 567297) Radio
Use red slider bar for more.
Kadette 36 ; International Radio (ID = 913894) Radio
International Radio: Kadette 36 [Radio] ID = 913894 933x546
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kadette 36, International Radio Corp (Kadette); Ann Arbor, MI.

Country:  United States of America (USA)
Manufacturer / Brand:  International Radio Corp (Kadette); Ann Arbor, MI.
alternative name

International All Wave || International Industries || International Kadette || IRC
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6D6 76 6D6 75 41 80
Main principle Superheterodyne (common); ZF/IF 448 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.83 inch = 17.3 cm
Power out
from Radiomuseum.org Model: Kadette 36 - International Radio Corp
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 17.5 x 9.83 x 7.75 inch / 445 x 250 x 197 mm
Notes International Kadette 36 Stabilized American-Foreign AC Super;
AM-MW: 540 - 1600 KHz, SW: 16 - 36 m = ~8.3 - 18.75 MHz,
special short wave stabilizer, tone control, walnut cabinet, price 32.50 US$.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

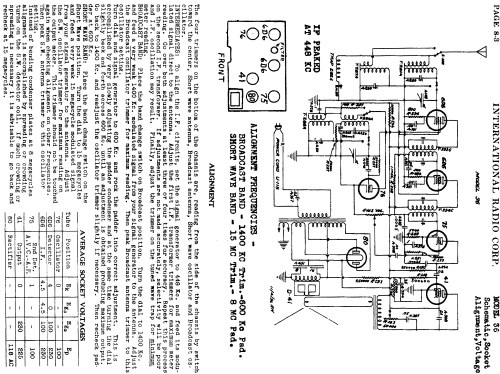

Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Guide to Old Radios
Literature/Schematics (1) Machine Age to Jet Age III
