• Country
• Spain

• Manufacturer / Brand
• Inter Electrónica, S.A., Inter-Grundig, S.A.; Barcelona

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 232585

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 125; 220 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

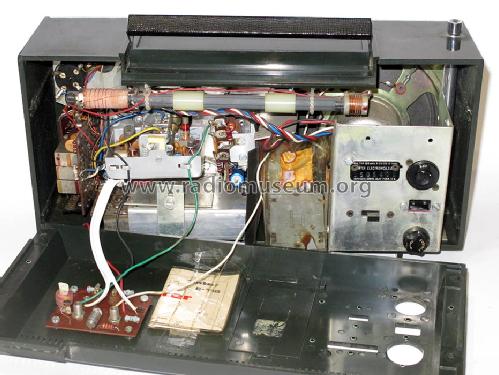

• Model: E-118 TRP-306 - Inter Electrónica, S.A., Inter

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 150 x 100 mm / 11.8 x 5.9 x 3.9 inch

• Notes

• Módulo 136.199 puede verse desarrollado en Euromodul 80-FM; 80B-FM; 80C_FM, 90-FM.

  Módulo 136.254 puede verse desarrollado en Euromodul 80-FM; 80B-FM; 80C-FM, 90-FM, 101-FM.

  Módulo 136.388a puede verse desarrollado en Euromodul 112-FM



• Author
• Model page created by Jordi Duran. See "Data change" for further contributors.
