AM/FM 2 Band Radio AS754A

International (virtual brand)

Data
Forum
Pictures
Collections

  • Year
  • 1990 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 354940

 Technical Specifications

  • Number of Transistors
  • 2
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / 220 / C: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AM/FM 2 Band Radio AS754A - International virtual brand
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 235 x 140 x 60 mm / 9.3 x 5.5 x 2.4 inch
  • Notes

  • FM 87.5 - 108 MHz
    AM 526.5 - 1606.5 kHz.
    Front: power on - off switch, FM - AM switch, with two small indicators of different colors; dial with red power indicator LED, knobs for volume and tone.
    On the left, socket for power supply, on the right, tuning knob.

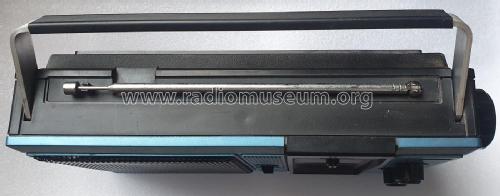

    On the upper side, the external telescopic antenna, with 5 sections, 65 cm long. On the rear side, access to the battery compartment. From the speaker grille it would appear also a tweeter with a diameter of 2 cm. Ferrite 7 cm. Speaker with 2W, 8 ohm writing. Rigid handle with limited travel.

    The radio was also sold under the Taurus brand, but always with the same code.

    Made in China

  • Net weight (2.2 lb = 1 kg)
  • 0.820 kg / 1 lb 12.9 oz (1.806 lb)
  • Author
  • Model page created by Felice Nicolini. See "Data change" for further contributors.
