International AM/FM Radio NL-833

International AM/FM Radio NL-833; International (ID = 1260314) Radio International AM/FM Radio NL-833; International (ID = 1260327) Radio

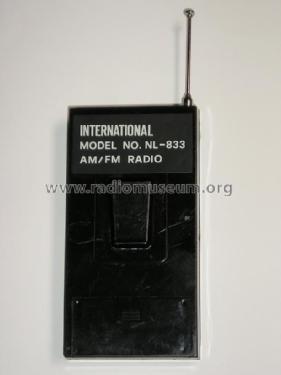

International AM/FM Radio NL-833; International (ID = 1262076) Radio
Use red slider bar for more.
International AM/FM Radio NL-833; International (ID = 1260314) Radio
International: International AM/FM Radio NL-833 [Radio] ID = 1260314 318x771
Select picture or schematic to display from thumbnails on the right and click for download.
For model International AM/FM Radio NL-833, International (virtual brand)

Country:  unknown Country
Manufacturer / Brand:  International (virtual brand)
Year: 1987 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) CXA1191
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: International AM/FM Radio NL-833 - International virtual brand
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 135 x 25 mm / 2.8 x 5.3 x 1 inch
Notes Integrated circuit CXA1191M, "Single Chip" radio.
Net weight (2.2 lb = 1 kg) 0.180 kg / 0 lb 6.3 oz (0.396 lb)

Model page created by Mario Coelho. See "Data change" for further contributors.
