Multi-Band Compact Radio Receiver 877S
International (virtual brand)
- Country
- unknown Country
- Manufacturer / Brand
- International (virtual brand)
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 350460

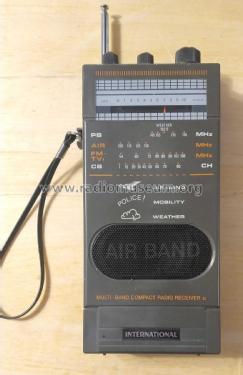

Vorderseite
Innenleben

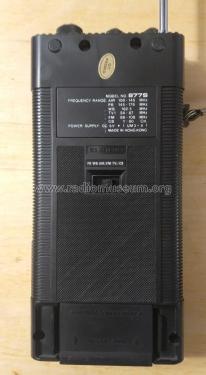

Rückseite

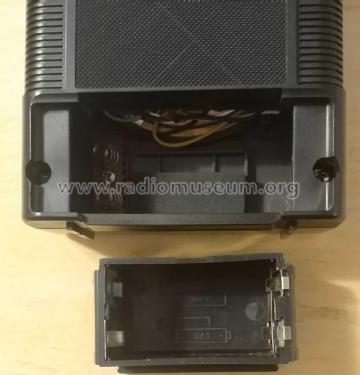

Batteriefach

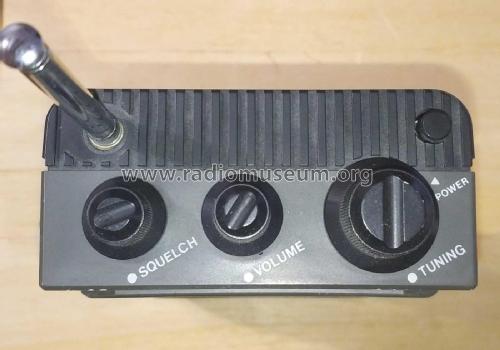

Oberseite
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Multi-Band Compact Radio Receiver 877S - International virtual brand
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 100 x 215 x 45 mm / 3.9 x 8.5 x 1.8 inch
- Notes
-
Multi-Band Compact Radio Receiver
International Hong KongPB: 145 - 176 MHz
Air: 108 - 136 MHz
FM/TV: 54 - 108 MHz
CB: 1 - 80 MHzKopfhöreranschluss
Siehe auch die ähnlichen Modelle:
Multi-Band Compact Radio Receiver Worldcontrol-R und
Spacecontroll-T Multi-Band Compact Radio Receiver
- Net weight (2.2 lb = 1 kg)
- 0.450 kg / 0 lb 15.9 oz (0.991 lb)
- Author
- Model page created by Michael Ludwigs. See "Data change" for further contributors.
