MW/UKW Tragbares Transistor Radio TR-20

MW/UKW Tragbares Transistor Radio TR-20; Intersound brand (ID = 2002000) Radio MW/UKW Tragbares Transistor Radio TR-20; Intersound brand (ID = 2002001) Radio
MW/UKW Tragbares Transistor Radio TR-20; Intersound brand (ID = 2002002) Radio MW/UKW Tragbares Transistor Radio TR-20; Intersound brand (ID = 2002003) Radio
MW/UKW Tragbares Transistor Radio TR-20; Intersound brand (ID = 2002004) Radio
Use red slider bar for more.

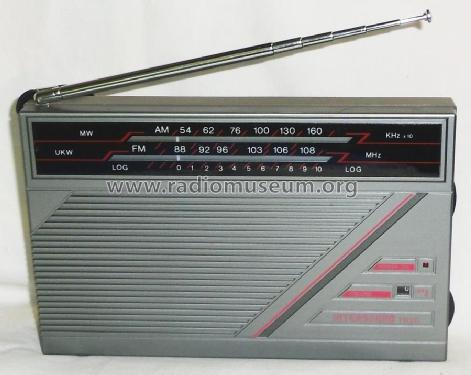

MW/UKW Tragbares Transistor Radio TR-20; Intersound brand (ID = 2002000) Radio
Intersound brand: MW/UKW Tragbares Transistor Radio TR-20 [Radio] ID = 2002000 900x716
Select picture or schematic to display from thumbnails on the right and click for download.
For model MW/UKW Tragbares Transistor Radio TR-20, Intersound (brand)

Country:  Switzerland
Manufacturer / Brand:  Intersound (brand)
Year: 1989 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: TA7613 2SC1417 2SC1417
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: MW/UKW Tragbares Transistor Radio TR-20 - Intersound brand
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 185 x 118 x 35 mm / 7.3 x 4.6 x 1.4 inch
Notes

MW/UKW Taschenempfänger mit 50cm schwenkbarer Teleskopantenne, Textil Trageschlaufe, LED Betriebsanzeige und 3,5mm Ohrhöreranschluss.

Empfangsbereiche:
MW: 530 - 1600kHz,
UKW: 87,5 - 108,5MHz.

Net weight (2.2 lb = 1 kg) 0.336 kg / 0 lb 11.8 oz (0.74 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
