• Country
• Netherlands

• Manufacturer / Brand
• INTRON Instruments; Kerkrade

• Year
• 1985 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 191282

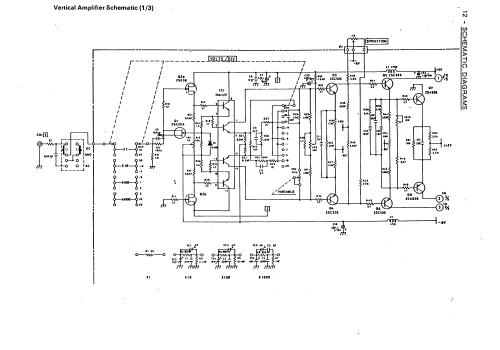

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 150BTB31

• Number of Transistors
• 93

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 90-110; 104-126; 194-236; 207-253 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Storage Oscilloscope DSO-2000 - INTRON Instruments; Kerkrade

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 235 x 155 x 420 mm / 9.3 x 6.1 x 16.5 inch

• Notes
• 2 Kanal Analog- und Speicheroszilloskop 20MHz, Kanäle A, B, A&B, A+B.
  Anschluss für Z-Achse (Dunkeltastung),
  Empfindlichkeit 5 mV bis 20 V/Div.in 12 Bereichen.
  X-Y Mode, diverse Betriebsarten im Speicherbetrieb. Externer Triggereingang.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Dietrich Grötzer. See "Data change" for further contributors.
