Miami 330

Miami 330; Invicta Radio, (ID = 219085) Radio

Miami 330; Invicta Radio, (ID = 219086) Radio

Miami 330; Invicta Radio, (ID = 219087) Radio
Miami 330; Invicta Radio, (ID = 2236867) Radio Miami 330; Invicta Radio, (ID = 2236868) Radio

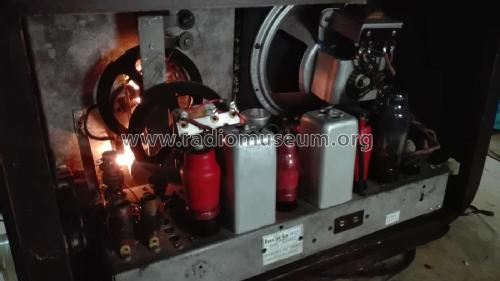

Miami 330; Invicta Radio, (ID = 2236869) Radio Miami 330; Invicta Radio, (ID = 2236870) Radio
Miami 330; Invicta Radio, (ID = 617402) Radio
Use red slider bar for more.

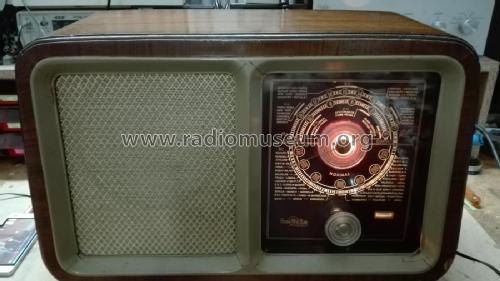

Miami 330; Invicta Radio, (ID = 2236867) Radio
Invicta Radio,: Miami 330 [Radio] ID = 2236867 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model Miami 330, Invicta Radio, Barcelona

Country:  Spain
Manufacturer / Brand:  Invicta Radio, Barcelona
alternative name

Establecimientos Lucarda || Radio Lucarda, S.L
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH35 EF9 EBC33 EL33 AZ31
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Miami 330 - Invicta Radio, Barcelona
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Price in first year of sale 2'790.00 ESP
Source of data -- Original-techn. papers.
Literature/Schematics (1) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
