• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152297

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC81 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage

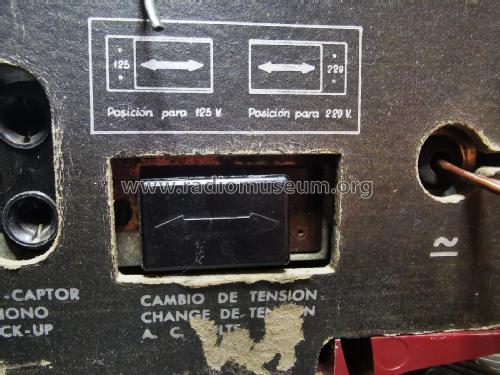

• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

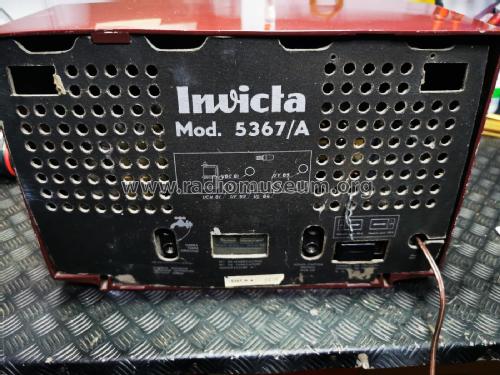

• Model: Barajas 5367 /A - Invicta Radio, Barcelona

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 340 x 215 x 150 mm / 13.4 x 8.5 x 5.9 inch

• Notes

• Serie Air-Port

• Literature/Schematics (2)
• -- Schematic

• Author
• Model page created by Julio Divi-Castellon. See "Data change" for further contributors.
