- Country
- Spain
- Manufacturer / Brand
- Invicta Radio, Barcelona
- Year
- 1959 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 155583
-
- alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

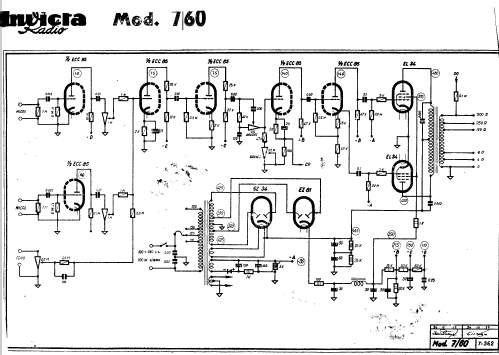

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110;125;150;220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 60 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: 7/60 - Invicta Radio, Barcelona
- Source of data
- -- Schematic
- Author
- Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
