New Junior 650

New Junior 650; Invicta Radio Ltd.; (ID = 1316624) Radio
New Junior 650; Invicta Radio Ltd.; (ID = 1316468) Radio New Junior 650; Invicta Radio Ltd.; (ID = 2007103) Radio
New Junior 650; Invicta Radio Ltd.; (ID = 2007104) Radio New Junior 650; Invicta Radio Ltd.; (ID = 2007107) Radio
New Junior 650; Invicta Radio Ltd.; (ID = 2007108) Radio New Junior 650; Invicta Radio Ltd.; (ID = 2007109) Radio
New Junior 650; Invicta Radio Ltd.; (ID = 2007110) Radio New Junior 650; Invicta Radio Ltd.; (ID = 2007111) Radio

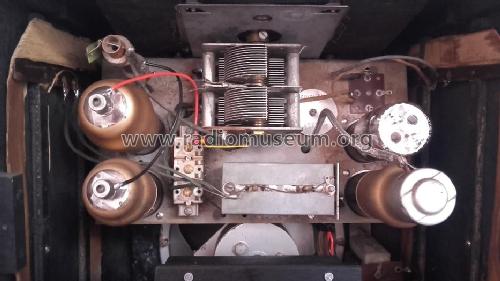

New Junior 650; Invicta Radio Ltd.; (ID = 2007114) Radio New Junior 650; Invicta Radio Ltd.; (ID = 2007115) Radio
Use red slider bar for more.
New Junior 650; Invicta Radio Ltd.; (ID = 1316468) Radio
Invicta Radio Ltd.;: New Junior 650 [Radio] ID = 1316468 933x972
Select picture or schematic to display from thumbnails on the right and click for download.
For model New Junior 650, Invicta Radio Ltd.; Cambridge, London:
eBay mikeb2304 330809727084

Country:  Great Britain (UK)
Manufacturer / Brand:  Invicta Radio Ltd.; Cambridge, London
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: FC2A VP2B_Mullard TDD2A PM22A
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: New Junior 650 - Invicta Radio Ltd.; Cambridge,
Shape Portable set > 8 inch (also usable without mains)
Notes

Released January 1939. Similar to 120V HT B29P Transportable (different case). Both have frame aerials. Late 1939 or early 1940 replaced by an "All Dry" model using 1.5V Zinc Dry battery for LT.

LT 2V Lead Acid Accumulator, probably a Gel type.

Price in first year of sale 8.93 GBP

Model page created by Michael Watterson. See "Data change" for further contributors.
