Zaria (Заря) 2 tubes_Irkutsk

Zaria ; Irkutsk relay (ID = 1653476) Radio
Zaria ; Irkutsk relay (ID = 1648493) Radio Zaria ; Irkutsk relay (ID = 1648494) Radio
Zaria ; Irkutsk relay (ID = 1648495) Radio Zaria ; Irkutsk relay (ID = 1648496) Radio
Zaria ; Irkutsk relay (ID = 1648497) Radio Zaria ; Irkutsk relay (ID = 1648498) Radio
Zaria ; Irkutsk relay (ID = 1648499) Radio Zaria ; Irkutsk relay (ID = 1648501) Radio
Zaria ; Irkutsk relay (ID = 1648502) Radio Zaria ; Irkutsk relay (ID = 1648503) Radio
Use red slider bar for more.
Zaria ; Irkutsk relay (ID = 1648493) Radio

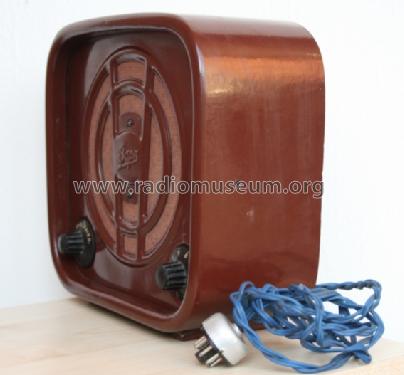

Irkutsk relay: Zaria [Radio] ID = 1648493 576x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model Zaria (Заря) 2 tubes_Irkutsk, Irkutsk relay factory; Irkutsk:
Kaunas Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Irkutsk relay factory; Irkutsk
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: 1Б1П 2П1П
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast and LongWave in ONE range.
Details
Power type and voltage Dry Batteries / 3 & 60 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Zaria [2 tubes_Irkutsk] - Irkutsk relay factory; Irkutsk
Material Various materials
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 230 x 250 x 105 mm / 9.1 x 9.8 x 4.1 inch
Notes

Possible to use as cable (wired) radio, or as simple crystal radio set too.
Special sockets for detector, headphones and radio line - see schematic.
This radio is most simple (most primitive) past WW2 russian tube radio.

Literature/Schematics (2) -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
