- Country
- Czechoslovakia
- Manufacturer / Brand
- Iron-Radio, Ing. Galoda a Spol; Brno-Zidenice
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 23059
CZ IRON 407 vorn

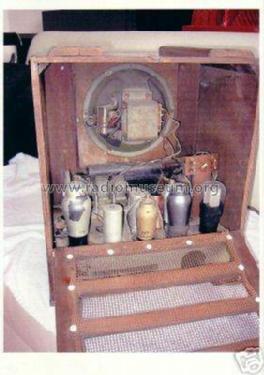

CZ IRON 407 innen Baujahr 1934-35
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 120 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Iron 407 - Iron-Radio, Ing. Galoda a Spol
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 367 x 436 x 273 mm / 14.4 x 17.2 x 10.7 inch
- Notes
- Zeiger-Abstimmhilfe
- Price in first year of sale
- 2,640.00 CSK
- External source of data
- Erb
- Source of data
- Ceskoslovenske prijimace 1933-1945, Baudys 1947
