Radio Radio 20-1
Isis Electronics; Hong Kong
- Country
- Hong Kong
- Manufacturer / Brand
- Isis Electronics; Hong Kong
- Year
- 1970
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 124823

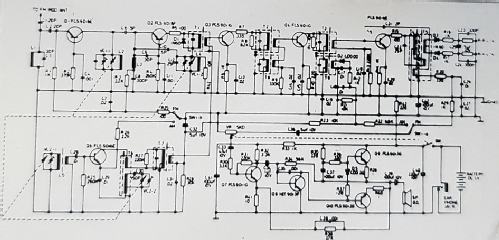

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage

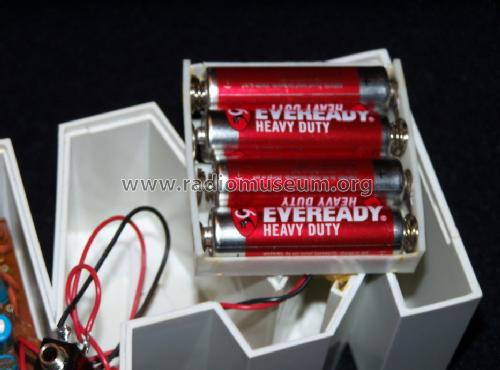

- Dry Batteries / AA; 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Power out
- 0.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radio Radio 20-1 - Isis Electronics; Hong Kong
- Shape

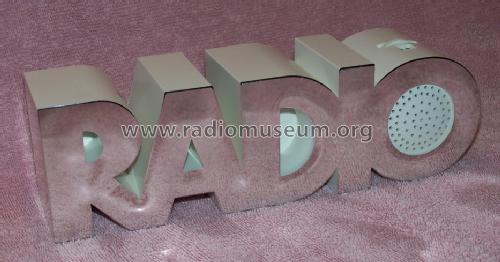

- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 240 x 70 x 65 mm / 9.4 x 2.8 x 2.6 inch
- Notes
-
See also:
- Allorgan Radio R-108
- Avon Isis 20-1
- Isis AM-FM Radio 20
- Isis Enjoy Coca-Cola 20-1
- Isis Radio Radio CKSW570
- Isis Radio Remember Burati
- Isis Rock Radio gets Results
- Isis WWF VMR-42
- Oppex Radio 7223
- Tristar Radio TR-4280
- Net weight (2.2 lb = 1 kg)
- 0.6 kg / 1 lb 5.1 oz (1.322 lb)
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
