V-A Meter H13

V-A Meter H13; Iskolai Taneszközök (ID = 640497) Equipment V-A Meter H13; Iskolai Taneszközök (ID = 640507) Equipment
V-A Meter H13; Iskolai Taneszközök (ID = 640503) Equipment V-A Meter H13; Iskolai Taneszközök (ID = 640499) Equipment
V-A Meter H13; Iskolai Taneszközök (ID = 640501) Equipment V-A Meter H13; Iskolai Taneszközök (ID = 640505) Equipment
Use red slider bar for more.

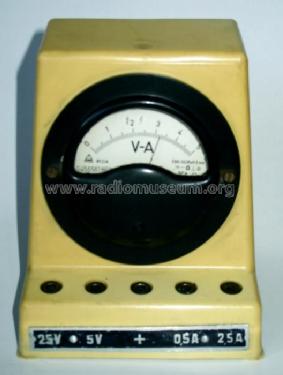

V-A Meter H13; Iskolai Taneszközök (ID = 640497) Equipment
Iskolai Taneszközök: V-A Meter H13 [Equipment] ID = 640497 529x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model V-A Meter H13, Iskolai Taneszközök Gyára (Calderoni,ITG; Budapest

Country:  Hungary
Manufacturer / Brand:  Iskolai Taneszközök Gyára (Calderoni,ITG; Budapest
Year: 1972 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: V-A Meter H13 - Iskolai Taneszközök Gyára
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 110 x 120 x 110 mm / 4.3 x 4.7 x 4.3 inch

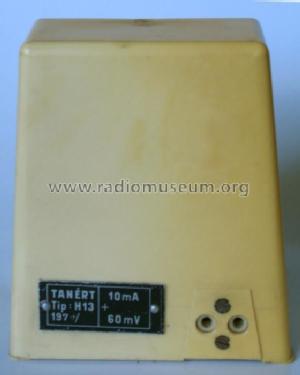

Notes DC: 5 and 25 V, 0,5 and 2,5 A; Precizion: 1,5 % Deprez; Found meter: 10 mA, 60 mV.
Net weight (2.2 lb = 1 kg) 0.436 kg / 0 lb 15.4 oz (0.96 lb)
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
