• Year
  • 1962 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 243873

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 482 kHz; 3 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
  • Power out
  • 0.35 W (0.5 W max.)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

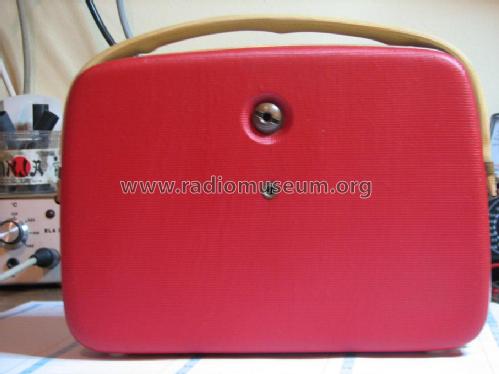

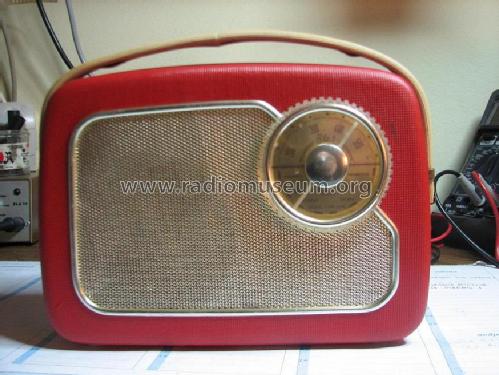

  • Model: Bled 62 - Iskra; Kranj, Ljubljana
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 210 x 150 x 60 mm / 8.3 x 5.9 x 2.4 inch
  • Notes
  • There is an export version of this model named Bled 162. The dial is lettered with frequencies only (domestic model uses station names and frequencies).

  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Mentioned in
  • -- Original-techn. papers.
