Universal Bridge MA 4302

Universal Bridge MA 4302; Iskra - Kranj (ID = 2214924) Equipment

Universal Bridge MA 4302; Iskra - Kranj (ID = 2214918) Equipment

Universal Bridge MA 4302; Iskra - Kranj (ID = 2214920) Equipment

Universal Bridge MA 4302; Iskra - Kranj (ID = 2214922) Equipment

Universal Bridge MA 4302; Iskra - Kranj (ID = 2214923) Equipment
Universal Bridge MA 4302; Iskra - Kranj (ID = 2214873) Equipment Universal Bridge MA 4302; Iskra - Kranj (ID = 2214876) Equipment
Universal Bridge MA 4302; Iskra - Kranj (ID = 2214877) Equipment Universal Bridge MA 4302; Iskra - Kranj (ID = 2214878) Equipment

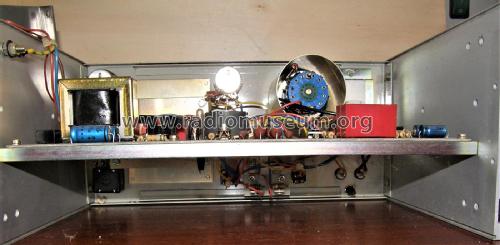

Universal Bridge MA 4302; Iskra - Kranj (ID = 2214879) Equipment
Use red slider bar for more.
Universal Bridge MA 4302; Iskra - Kranj (ID = 2214873) Equipment
Iskra - Kranj: Universal Bridge MA 4302 [Equipment] ID = 2214873 1400x1016
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universal Bridge MA 4302, Iskra - Kranj

Country:  Yugoslavia
Manufacturer / Brand:  Iskra - Kranj
Year: 1983 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 1: 2N4222 µA741 µA741 µA709 unknown_IC
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universal Bridge MA 4302 - Iskra - Kranj
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 300 x 195 x 130 mm / 11.8 x 7.7 x 5.1 inch
Notes

Measuring ranges:

R: from 0.1 Ω to 10 MΩ, in 8 ranges
C: from 10 pF to 1000 µF, in 8 ranges
L: from 10 µH to 100 H, in 8 ranges

Measuring frequencies: 1 kHz and 10 kHz
Operation temperature range: from +5oC to +40oC
Fuse: 0,032 A

Cabinet shape: fold-out front rests allowing operation in a tilted position.

Net weight (2.2 lb = 1 kg) 3.250 kg / 7 lb 2.5 oz (7.159 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Dragutin Kojić. See "Data change" for further contributors.
