For model Radio/Cassette/TV Kombi 80, ISP KG Dieter Lather; Dreieich bei Frankfurt

Country:  Germany
Manufacturer / Brand:  ISP KG Dieter Lather; Dreieich bei Frankfurt
Year: 1980 ?? Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 1: 140CFB4
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Cassette-Recorder or -Player

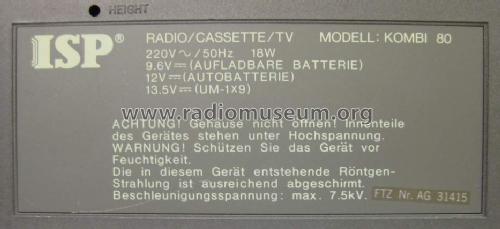

Power type and voltage Line / Batteries (any type) / 220/ 9,6; 12; 9 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Radio/Cassette/TV Kombi 80 - ISP KG Dieter Lather; Dreieich
Material Modern plastics (no Bakelite or Catalin)

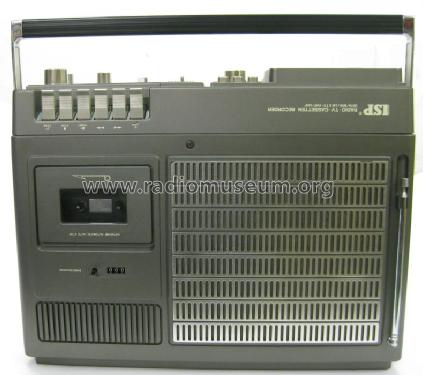

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 420 x 160 x 320 mm / 16.5 x 6.3 x 12.6 inch
Notes ISP Radio/Cassette/TV Kombi 80;
S/W TV mit elektronischem CCIR B/G VHF/UHF Tuner, UKW/MW/LW Multiband Radio, deutsche Beschriftung, Bass/Höhen Regler, eingeb. Mikrofon, ext. Antenne in, ext. 12 VDC in, DIN Buchse, Kopfhöreranschluß, ext. Mik. in, Osz. Schalter, Bandzählwerk, 18 W Netzleistungsaufnahme. Anschluss für Betrieb mit 9,6V Akku im Batteriefach, Ladeeinrichtung im Gerät
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
