• Year
  • 1977 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 296775

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Uhrenradio [Radiowecker] - ISP KG Dieter Lather; Dreieich
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 270 x 105 x 135 mm / 10.6 x 4.1 x 5.3 inch
  • Notes

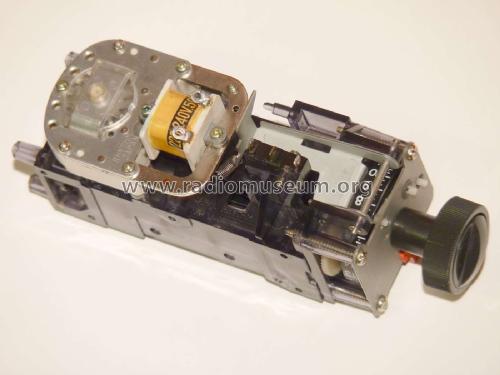

  • Keine Typangabe, obwohl Gerät komplett. Jahr auf Grund Datecodes auf div. Elkos, also spätes Gerät noch mit mech. Digitaluhr (Herst. Uhrwerk bzw. movement RHYTHM Japan).

  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Author
  • Model page created by Boris Witke. See "Data change" for further contributors.
